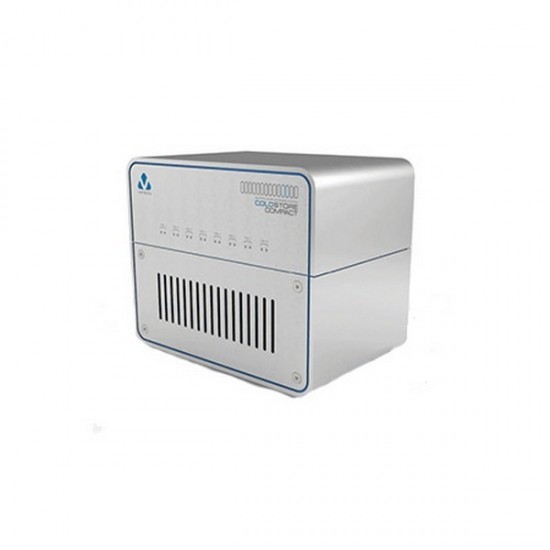

CSTORE-COMPACT-16 Veracity Coldstore Compact LAID/SFS 8-Bay Network Attached Storage System (NAS) - 8 x 2TB

Specifications:

General

• Storage Array Type - Custom NAS server running L.A.I.D. with S.F.S. disk filing system
• Interface - Single Gigabit Ethernet
• Data throughput - 400Mbit/sec (unlimited scalability with multiple COLDSTORE units)

System

• O.S. - Embedded Linux on solid state memory
• System Control - Direct from 3rd party client application (SDK & network protocols available)
• Configuration - Over LAN via Veracity client application or 3rd party client application
• Management - By front panel, or over LAN via Veracity client app. or 3rd party client app
• Compatibility - All COLDSTORE supported VMS systems (see website for current list). Directly compatible with the Veracity TRINITY system architecture. Also available with embedded Milestone Arcus (see part codes)

Capacity

• Drive Bays - 8 x 2.5” (disk trays included)
• Maximum capacity w/ 2TB Disks - Raw – 16TB, Effective – 14TB

Alarms

• Alarm Relays - 4 software configurable e.g. disk fail, disk inserted, disk extracted, PSU fail, etc.
• Alarm Inputs - 4 software configurable e.g. UPS active, power down, start fans, etc.

Power

• Power Supply - 12v DC, 3A External PSU
• Power Consumption - 16 Watt typical

Time Synchronization

• Time Synchronization - via NTP (recommended)

Physical/Environmental

• Dimensions - W 225mm, H 188mm, D 150mm
• Weight - 3.9kg (without disks)
• Operating temperature - 41F to 122F
• Cooling - Low speed fan - near silent operation
• Relative humidity - Up to 85%, non-condensing
• Compliance - CE, FCC, RoHS

CSTORE-COMPACT-16 Specifications PDF
