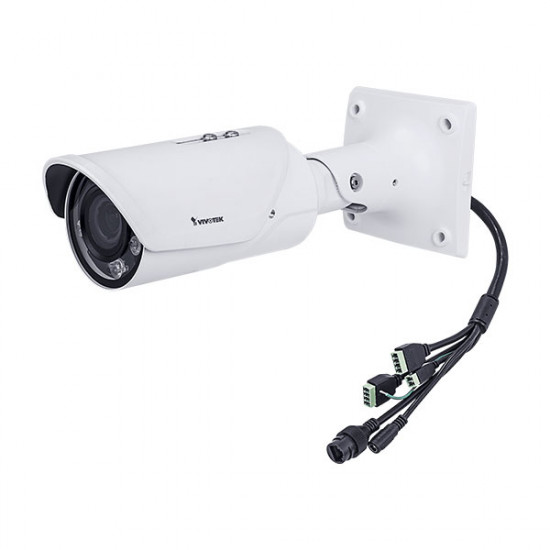

IB8377-EHT Vivotek 2.8-12mm Varifocal 30FPS @ 4MP Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE - Extreme Weather

VIVOTEK’s IB8377-(E)HT is a series of outdoor bullet network cameras equipped with a 4MP sensor enabling resolution of 2688x1520 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB8377-(E)HT series is capable of capturing high quality images whether in high contrast or low light environments.

The IB8377-(E)HT series includes a remote focus lens for different monitoring range demands and is equipped with 30-meter IR illuminators for improved night visibility. For harsh outdoor environments, the IB8377-(E)HT series is encased in an IP66, IP67 and IK10-rated housing, making it impervious to rain and dust.

Through employing VIVOTEK's Smart Stream II technology, the IB8377-(E)HT series provides great image quality while still maintaining low bandwidth. Additionally, VADP (VIVOTEK Application Development Platform) allows users to add customized applications for various user scenarios.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/3" Progressive CMOS
• Max. Resolution - 2688 x 1520
• Lens Type - Vari-focal, Remote Focus
• Focal Length - f = 2.8 ~ 12 mm
• Aperture - F1.4 ~ F2.8
• Iris type - P-iris
• Field of View - 32° ~ 93° (Horizontal), 18° ~ 50° (Vertical), 37° ~ 110° (Diagonal)
• Shutter Time - 1/5 sec. to 1/16,000 sec.
• WDR Technology - WDR Pro (supports up to 3.6MP, 24 fps @ 2560x1440)
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.1 Lux @ F1.4 (Color), 0.01 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
• Tilt Range - 90°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators - Built-in IR illuminators, effective up to 30 meters with Smart IR II, IR LED*5
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording

Video

• Compression - H264, MJPEG
• Maximum Frame Rate -30fps @ 2688 x 1520 (WDR Pro off), 24fps @ 2560x1440 (WDR Pro on)
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 68 dB
• Dynamic Range - 110 dB
• Video Streaming - Adjustable resolution, quality and constant bit rate control, Smart Stream II
• Image Settings - Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, HLC, AE speed, video rotation

Audio

• Audio Capability - Two-way audio
• Compression - G.711, G.726
• Interface - External Mic input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, PIR detection, MicroSD card life expectancy
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors - RJ-45 cable connector for Network/PoE connection, Audio input, Audio output, DC 12 V, Digital input *1, Digital output *1
• LED Indicator - System power and status indicator
• Power Input - DC 12V, IEEE 802.3at PoE Class 4
• Power Consumption - Max. 24 W
• Dimensions - 294 x 118 x 118 mm
• Weight - 1,269 g
• Casing - IP66, IP67, IK10 (Metal Housing)
• Safety Certifications - CE, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature - Starting Temperature: -40°F ~ 122°F, Working Temperature: -58°F ~ 122°F
• Humidity - 90%
• Warranty - 36 Months

System Requirements

• Operating System - Microsoft Windows 8/7, Mac 10.12(Chrome only)
• Web Browser - Chrome 58.0, Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above, Quicktime: 7 or above

Included Accessories

• Others - Quick installation guide, warranty card, screw pack, alignment sticker
