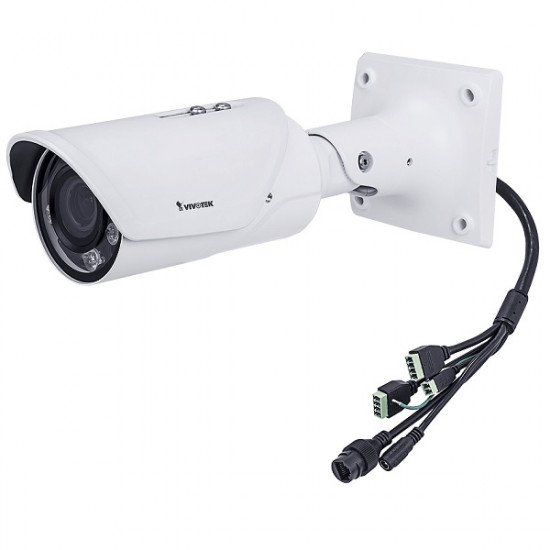

IB9367-HT Vivotek 2.8~12mm Varifocal 30FPS @ 1080p Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/POE

The IB9367 series is the new professional outdoor IR bullet network camera from VIVOTEK, equipped with a full HD sensor capable of 1920 x 1080 resolution at 30 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the IB9367 series is capable of capturing the highest quality images in both low light and high contrast environments.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/2.8" Progressive CMOS
• Maximum Resolutiono - 1920x1080
• Lens Type - Vari-focal, Remote Focus
• Focal Length - f = 2.8 ~ 12 mm
• Aperture - F1.4 ~ 2.8
• Auto-iris - P-iris
• Field of View - 33° ~ 97° (Horizontal), 19° ~ 53° (Vertical), 38° ~ 114° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.07 Lux @ F1.6 (Color),0.001 Lux @ F1.6 (B/W),0 Lux with IR illumination on
• Pan Range - 90°
• Rotation Range - 180°
• Pan/tilt/zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• IR Illuminators - Built-in IR illuminators, effective up to 20 meters with Smart IR IR LED*8
• On-board Storage - MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 1920x1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 58 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate Smart Stream II
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog

Audio

• Audio Capability - Two-way audio
• Compression - G.711, G.726
• Interface - External Mic input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
• Alarm Events - Event notification using HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card

General

• Connectors - RJ-45 for Network/PoE connection, Mbps PoE connection, Audio Mic in, Audio line out, DC 12V, Digital input *1, Digital output *1
• LED Indicator - System power and status indicator
• Power Input - DC 12V, IEEE 802.3af PoE Class 0
• Power Consumption - Max. 12 W
• Dimensions - 294 x 118 x 118 mm
• Weight - 1,254 g
• Casing - IP66, IP67, IK10 (Metal Housing)
• Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Operating Temperature - Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above Quicktime: 7 or above

IB9367-HT Specifications PDF
