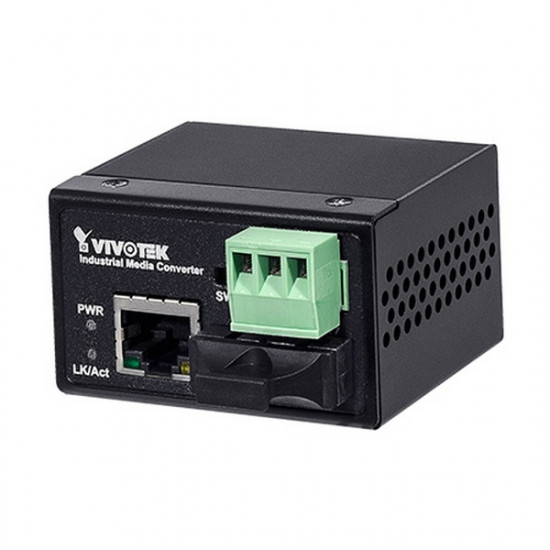

AW-IHS-0201 Vivotek Industrial FE Media Converter SC Single-Mode Fiber 30KM

Specifications

IP Camera Compatibility

• Video Resolution - Megapixel/D1/VGA
• Video Compression - MJPEG/MPEG-4/H.264/H.265

Ethernet

• Gigabit Ethernet (RJ45) - 1
• Fast Ethernet (Fiber) - SC Multi-mode 30 km

Standards

• IEEE 802.3 10-BASE-T (Ethernet) - Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet) - Supported
• IEEE 802.3x Flow Control (Full-duplex Flow Control) - Supported

Ethernet Performance

• MAC Address - 1 K
• Buffer Memory - 128 KB
• Transmission Method - Store and Forward
• Auto-MDI/MDI-X, Auto-Negotiation - Supported

Filtering/Forwarding Rates

• 10Mbps - 14,880 pps
• 100Mbps - 148,800 pps

Transmission Media

• 10Base T - Cat. 3, 4, 5 UTP/STP
• 100Base TX - Cat. 5, 5e UTP/STP
• It is highly recommended to use standard Cat. 5 & Cat. 5e cables which are compliant with the3P/ETL standard
li>

General

• LED Indicators - Power, LAN, SFP
• Power Input - 18V-36VAC or 12V-60VDC Power InputRemovable Terminal Block(Not include power supply)
• Power Consumption - 2W
• Housing - IP40 Design, High Graded Aluminum
• Installation - DIN-rail Mounting and Wall Mounting
• Dimensions - 59 (L) x 49 (W) x 36 (H) mm
• Weight - 0.08 kg
• Operating Temperature - -40°C ~ 75°C
• Storage Temperature - -40°C ~ 85°C
• Humidity - Operating: 5~95% (Non-condensing)Storage: 5~95% (Non-condensing)
• Safety Certifications - CE, C-Tick, FCC, VCCI, LVD

Accessory

• Included Accessories - QIG, Terminal Block, DIN-rail Brackets, WallMount Kit
• Optional Power Supply - Din Rail Power Supply:MDR-10-12: 85 ~ 264VAC In, 12VDC/10W Out,-20°C ~ 70°C

AW-IHS-0201 Specifications PDF
