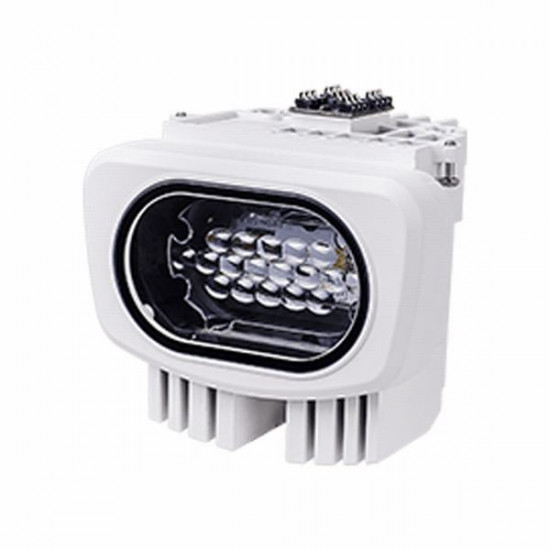

AI-108 Vivotek IR Illuminators 80~160m

Specifications

• Beam Angle (Horizontal) - 10° ~ 30° (adjustable by DIP switch or RS-485)
• Distance - 80 ~ 160 m
• Beam Pattern - Elliptical
• LED Array - 18 pcs LED
• Wavelength - 850nm
• Digital Input - IR ON/OFF control
• Digital Output - Trigger by Light Sensor
• Light Sensor Sensitivity - 100 Lux (adjustable via RS-485 control)
• Power Consumption - 24W
• Connector - ITB Touch Board
• Dimensions - 135 (L) x 106 (W) x 111 (H) mm
• Weight - 1.2 kg
• Operating Temperature - -40 °C ~ 50 °C(-40°F ~ 122°F)
• Storage Temperature - -40 °C ~ 70 °C(-4°F ~ 158°F)

AI-108 Specifications PDF
