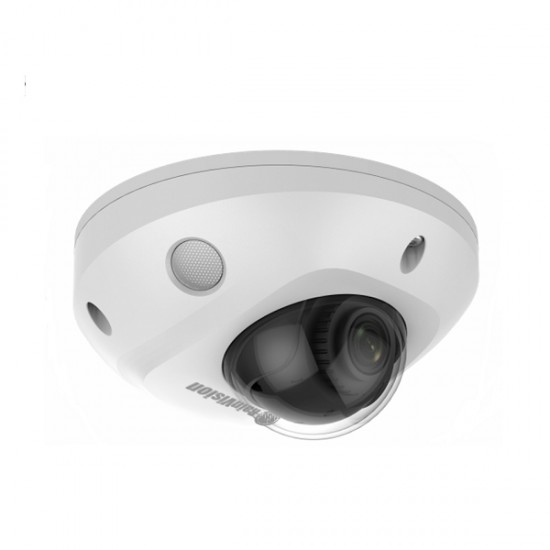

IPH2LPD4-3-W Rainvision 2.8mm 30FPS @ 4MP Outdoor IR WDR Day/Night Low Profile Dome IP Security Camera 12VDC/PoE

Features:

• 30FPS @ 4MP (2688 x 1520)
• 2.8mm Fixed Lens
• H.265 / H.264
• IR Range up to 30’
• WDR, DNR, Day/Night
• Outdoor IP66, Vandal-proof IK08
• 12VDC, PoE
• Available in White

Specifications

Camera

• Image Sensor - 1/3” Progressive Scan CMOS
• Min. Illumination - 0.01 lux @ F1.2, AGC ON, 0 lux with IR
• Shutter Speed - 1/3 s to 1/100,000 s
• Lens - 2.8 mm @ F1.6
• Day & Night - IR Cut Filter with Auto Switch
• IR Range - 30'
• DNR - 3D DNR
• Wide Dynamic Range - 120dB
• Angle of adjustment - Pan: -30°~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360°
• Field of View - Horizontal Field of View: 98°, Vertical Field of View: 55°, Diagonal Field of view: 114°

Compression Standard

• Video Compression - H.265 / H.264
• H.264 Type - Main Profile / High Profile
• H.265 Type - Main Profile
• Video Bit Rate - 32 Kbps ~ 16 Mbps
• Three Streams - Supported
• Audio Compression - G722.1 / G711ulaw / G711alaw / G726 / MP2L2 / PCM
• Audio Bit rate - 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)


• Max. Resolution - 2688 x 1520
• Frame Rate - 50Hz: 25fps (2688 x 1520, 2304 x 1296, 1920 x 1080), 60Hz: 30fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
• Image Setting - Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
• BLC - Support

Network

• Network Storage - MicroSD/SDHC/SDXC card (128G), Local Storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger - Motion Detection, Video Tampering, Network Disconnected, IP Address Conflict, HDD Full, HDD Error, Illegal Login
• Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6
• General - One-key Reset, Anti-flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
• Standard - ONVIF (PROFILE S, PROFILE G), ISAPI
• Interface - 1 RJ45 10M/100M Self-adaptive Ethernet Port
• Audio Interface - 2 Inputs: Line In (3.5 mm) or Mic In (Built-in Microphone), 1 Output: Line Out (3.5 mm), Mono Sound

General

• Operating Conditions - -22 °F to +140 °F, Humidity 95% or less (non-condensing)
• Power Supply - DC12V ± 25%, PoE (802.3af, Class 3)
• Power Consumption - 12 VDC, 0.7A, Max. 8.5W, PoE (802.3af, 36V to 57V), 0.3-0.1 Amp, Max. 10W
• Ingress Protection - IP66
• Impact Protection - IK08
• Dimensions - Φ 4.3" x 2.2"
• Weight - .9 lbs
• Warranty - 3 Years
• Package Contents - Camera, Installation CD / Manual / Template, Installation Accessories, Mounting Plate, Mounting Screws, Weathertight Connector

IPH2LPD4-3-W Specifications PDF
