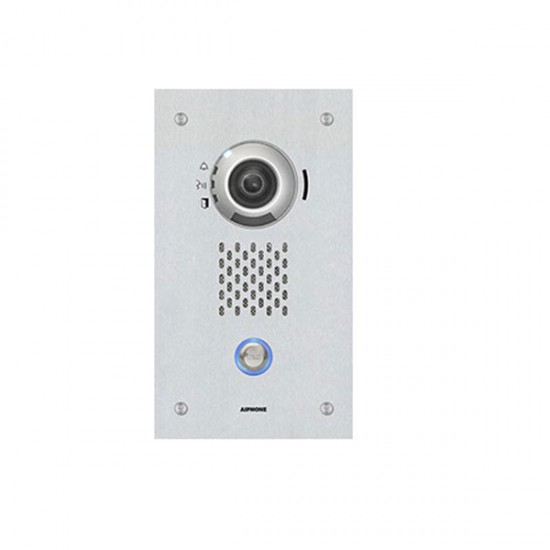

IX-DVF Aiphone IX Series IP Addressable Video Door Station - Flush

Features:

• Model: IX-DVF
• Aiphone Stock Number: 17532
• SIP 2.0 compliant
• 1.23 megapixel fixed color video camera
• White LED for low light illumination
• ONVIF Profile S compliant
• Camera vertical adjustment +15°, 0°, or -8° (manual)
• Slot for microSD card (not provided by Aiphone)
• Weather and vandal resistant (IP65)
• 2 contact outputs
• 6 trigger inputs
• stainless steel (IX-DVF)
• 802.3af PoE compliant
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+)

Specifications

• Power Source - PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
• Power Draw - 5.28 Watts
• Camera - ⅓" CMOS 1.23 megapixel
• Min. illumination - 5 lux
• Audio Codec - G.711 (μ-law, A law), G.722
• Video Codec - H.264/AVC, motion JPEG
• Protocols - IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security - IEEE 802.1X
• Operating Temp - -40° - 140°F (-40° - 60°C)
• Protection - IP65, IK07
• Dimensions - 10-7⁄16" H x 5-⅞" W
