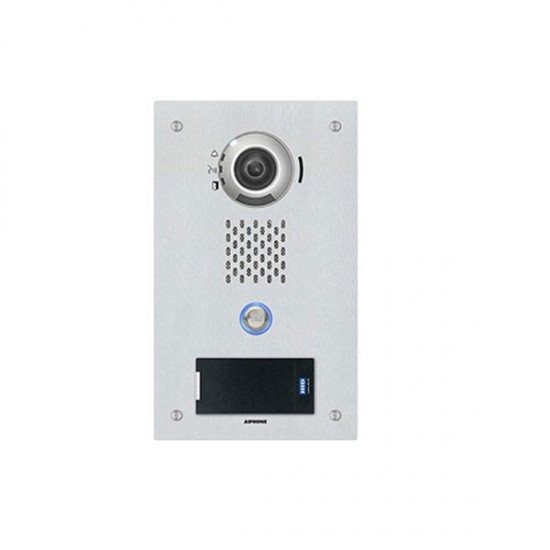

IX-DVF-P Aiphone IX Series IP Addressable Video Door With RP10

Features:

• HID multiCLASS SE RP10 card reader
• SIP 2.0 compliant
• 1.23 megapixel fixed color video camera
• White LED for low light illumination
• ONVIF Profile S compliant
• Camera vertical adjustment +15°, 0°, or -8° (manual)
• Slot for microSD card (not provided by Aiphone)
• Weather and vandal resistant (IP65)
• 2 contact outputs, 6 trigger inputs
• Stainless steel
• 802.3af PoE compliant
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+)

Specifications

• Power Source - PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
• Power Draw - 5.28 Watts
• Camera - ⅓" CMOS 1.23 megapixel
• Min. illumination - 5 lux
• Audio Codec - G.711 (μ-law, A law), G.722
• Protocols - IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security - IEEE 802.1X
• Operating Temp - -40° - 140°F (-40° - 60°C)
• Ingress Protection - IP65
• Impact Protection - IK07
• Dimensions - 11-11⁄16" H x 7" W

IX-DVF-P Datasheet
