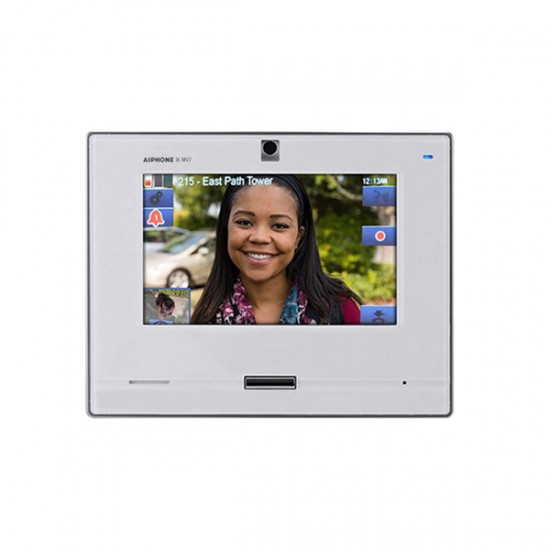

IX-MV7-W Aiphone IX Series IP Addressable Master Station and 7" - White

Features:

• Model: IX-MV7-W
• Aiphone Stock Number: 17144
• 7" TFT color LCD touchscreen
• Fixed color video camera with privacy shutter
• SIP 2.0 compliant
• 500 station address book
• ONVIF Profile S compliant
• Multi-angled desk stand (30°, 45°, 60°)
• Slot for microSD card (not provided by Aiphone)
• 802.3af PoE compliant
• 2 contact outputs, 4 trigger inputs
• 8Ω 1/2 watt speaker output
• 600Ω audio input

Specifications

• Power Source - PoE (IEEE 802.3af class 0)
• Power Draw - 4.32 Watts
• Camera - ⅓" CMOS 720p
• Min. illumination - 5 lux
• Audio Codec - G.711 (μ-law, A-law), G.722
• Video Codec - H.264/AVC, Motion JPEG
• Protocols - IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security - IEEE 802.1X
• Operating Temp - 32° ~ 104°F (0° ~ 40°C)
• Dimensions - 6-3⁄4" H x 8-11⁄16" W x 1-1⁄4" D

IX-MV7-W Specifications PDF

IX-MV Manual
