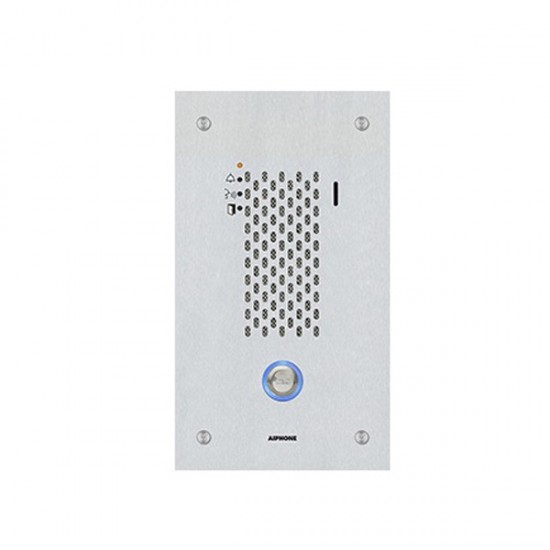

IX-SSA Aiphone IP Audio Door STN Flush

Features:

• SIP 2.0 compliant
• Illuminated call button indicator
• Slot for micro SD card (not provided by Aiphone)
• Weather and vandal resistant (IP65)
• 2 contact outputs
• 6 trigger inputs
• Stainless steel
• 802.3af PoE compliant
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+)



Specifications

• Power Source - PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
• Power Draw - 3.36 Watts
• Audio Codec - G.711 (μ-law, A law), G.722
• Protocols - IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security - IEEE 802.1X
• Operating Temp - -40° ~ 140°F (-40° ~ 60°C)
• Ingress Protection - IP65
• Impact Protection - IK07
• Dimensions - 10-7⁄16" H x 5-⅞" W

IX-SSA Specifications
