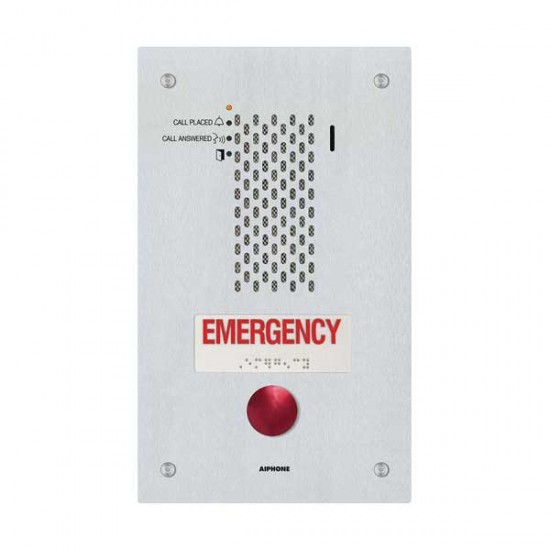

IX-SSA-RA Aiphone IP Audio Emergency Call STA

Features:

• Model: IX-SSA-RA
• Aiphone Stock Number: 17536
• IP Audio Emergency Call STA
• SIP 2.0 compliant
• 2 call buttons (IX-SSA-2RA), 1 call button (IX-SSA-RA)
• ADA compliant raised lettering and Braille signage
• Slot for microSD card (not provided by Aiphone)
• Weather and vandal resistant (IP65)
• 2 contact outputs
• 6 trigger inputs
• Stainless steel

The IX-SSA-RA and IX-SSA-2RA are flush mount, IP addressable emergency call stations. The IX-SSA-RA has a single emergency call button and placard with raised lettering and Braille signage.

Specifications

• Power Source - PoE (IEEE 802.3af class 0)or 24V DC (PS-2420UL)
• Power Draw - 3.36 Watts at 48 V DC
• Audio Codec - G.711(μ-law, A law), G.722
• Protocols - IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security - IEEE 802.1X
• Operating Temp - -40° ~ 140°F (-40° ~ 60°C)
• Ingress Protection - IP65
• Impact Protection- IK07
• Dimensions - 11-11⁄16" H x 7" W

IX-SSA-RA Specifications
